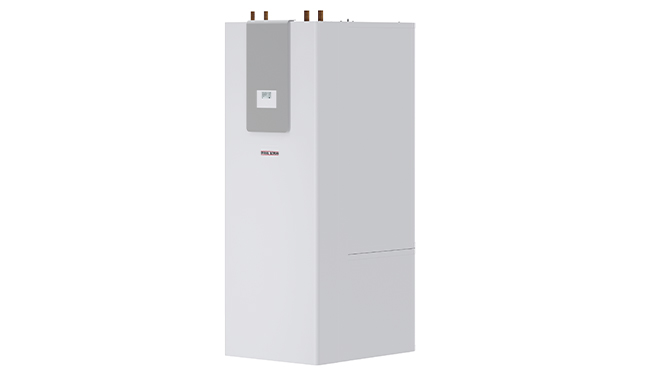

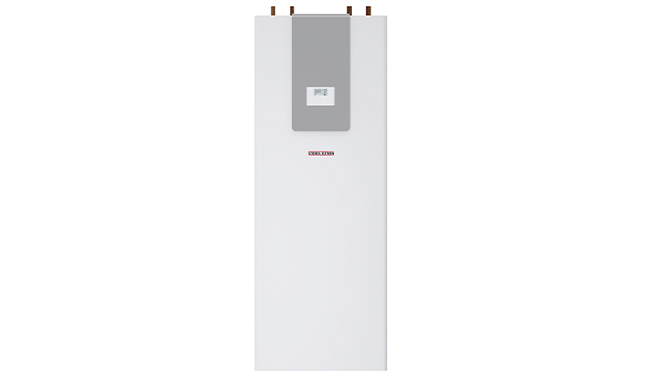

HSBC 300 Cool AU
- Combi appliance comprising a domestic hot water tank and a buffer tank
- Halves the installation space required for individual tanks
- Compact, compatible and energy saving for use in detached houses
- Perfectly matched components for use in conjunction with an air | water heat pump for domestic hot water, room heating, and cooling.
Product Overview

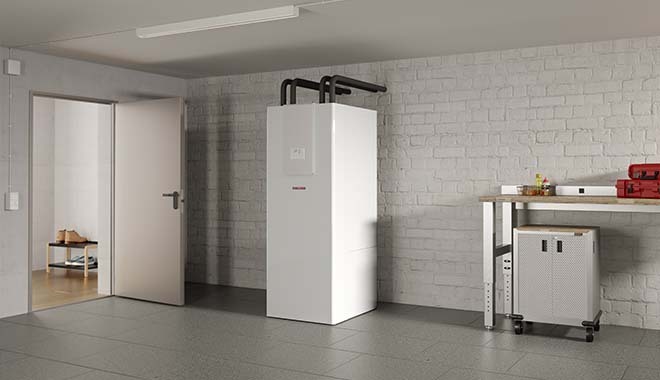

With the HSBC 300 cool integral cylinder, the hot water cylinder and buffer cylinder are not arranged side by side, but in a single appliance, piggyback style. This almost halves the footprint required, so installation is possible even where space is tight, leaving you with much more room than you expected. The HSBC 300 cool, precisely matched to utilisation with a heat pump, covers everything required in a detached house when it comes to heat and domestic hot water. All that and in a convenient format, too!
Product Details
APPLICATION: Integral cylinder for heat pump operation for DHW heating, also for simultaneous integration into heating systems for hydraulic connection and for propulsion and separation of the heat pump and heating circuit flow. Designed for use in detached houses for heating and cooling.
EQUIPMENT / CONVENIENCE: Hot water cylinder, enamelled steel with directly applied foam insulation, equipped with internal indirect coil and magnesium signal anode for additional corrosion protection. Buffer cylinder, steel with directly applied foam insulation. Separable cylinders arranged one above the other, with recessed grips to facilitate handling. Hydraulic connections on the heating side routed upwards; on the DHW side towards the back. Equipped with heating circuit pump and 3/2-way diverter valve. Connection adapters provided for joining/separating the flow and return, depending on the heat pump type. Hydraulic working parts are thermally insulated before the cylinder foam insulation is applied and are arranged behind the front panel. Prepared for optional extension with a heating circuit with mixer..
EFFICIENCY: Low standby losses due to high grade thermal insulation..
Technical Data
| Model Number | HSBC 300 Cool AU |
| Nominal capacity, DHW tank | 270 L |
| Nominal capacity, buffer tank | 100 L |
| Height | 1918 mm |
| Width | 680 mm |
| Depth | 910 mm |
| Energy efficiency class | B |
| Standby energy consumption/24 h at 65 °C | 1.5 kWh |
| Rated control voltage | 230 V |
| Rated voltage, emergency/booster heater | 230 V |
| Power consumption, emergency/booster heater | 6.0kW |
| Heat pump connection | 28 mm |
| Heating circuit connection | 22 mm |
| Cold water connection | 22 mm |
| Heating circuit connection | 22 mm |
| DHW circulation connection | 12 mm |
| Height of unit when tilted | 2123 mm |
| Weight | 250 kg |
