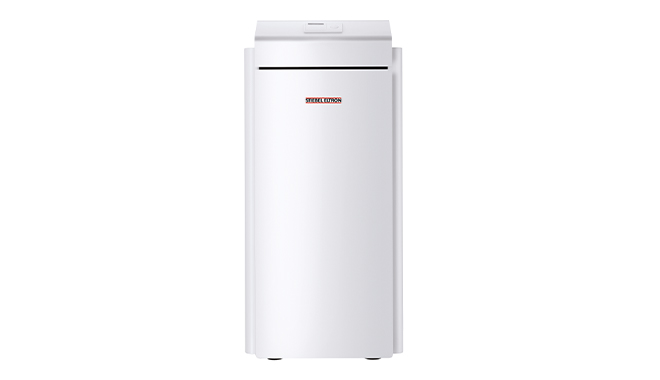

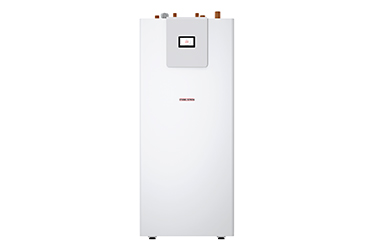

Geothermal Hydronic Heat Pumps

WPE-I 04 / 06 / 08 / 12 / 15 H 230

  • Geothermal heat pump for hot water and heating
  • Made in Germany
  • Year-round optimal operation and maximum efficiency thanks to inverter technology
  • High flow temperatures of up to 75 °C
  • Future-proof and environmentally friendly refrigerant
  • Quiet operation
  • Optional integration into the home network and control via smartphone
Ask Quick Question

Product Overview

Comfort moves into your home with the WPE-I H Premium inverter geothermal heat pumps. This device uses the heat from the ground for heating and hot water operation. The year-round constant heat output with high flow temperatures offers maximum living comfort regardless of the season.

Product Details

APPLICATION
Output-controlled inverter geothermal heat pump for indoor installation with a high degree of integration. Ideally suited for use in new buildings and renovations due to very high flow temperatures. Depending on the heating load of the building, it can also be used for apartment buildings.

EQUIPMENT / COMFORT
The constant source temperature ensures a year-round continuous heat output with high flow temperatures of up to 75 degrees Celsius. The integrated heat pump controller enables fully automatic control of the heating system. A highly efficient circulation pump and a pressure expansion vessel are included for the brine and heating side. An electric emergency / additional heater, a switch valve and a safety valve with a blow-out hose are integrated as standard. The refrigeration circuit works with the environmentally friendly and future-proof refrigerant R454C.

EFFICIENCY
The built-in inverter ensures optimal heat pump operation all year round and thus maximum efficiency.

INSTALLATION
Internal pressure hoses enable a direct hydraulic connection to the heating and brine circuits. For easy installation, the hydraulic connections are equipped with quick connectors and are already thermally insulated. Transport is made easier by carrying handles on the rear wall.

Technical Data

Model WPE-I 04 H 230 WPE-I 06 H 230 WPE-I 08 H 230 WPE-I 12 H 230 WPE-I 15 H 230
Output at B0/W35 (EN 14511) 4.19 kW 6.57 kW 7.64 kW 12.66 kW 14.78 kW
Coefficient of performance at B0/W35 (EN 14511) 4.60 4.60 4.67 5.01 4.86
Max. flow temperature 75 °C 75 °C 75 °C 75 °C 75 °C
Sound power level (EN 12102) 38-40 dB(A) 38-43 dB(A) 39-45 dB(A) 39-46 dB(A) 39-47 dB(A)
Rated compressor voltage 230 V 230 V 230 V 230 V 230 V
Height 1369 mm 1369 mm 1369 mm 1369 mm 1369 mm
Width 598 mm 598 mm 598 mm 598 mm 598 mm
Depth 658 mm 658 mm 658 mm 658 mm 658 mm
Weight 180 kg 180 kg 180 kg 190 kg 190 kg

Downloads

File Category Type Download
Looking for BIM / Revit files? Click here!
BIM / Revit Content
WPE-I H 230 Premium DatasheetData SheetPDF
360.02 kB
WPE-I H 230 Premium Operation & Installation GuideOperation and Installation GuidePDF
9.30 MB
Geothermal Hydronic Heat Pump WarrantyWarrantyPDF
146.98 kB
Air and Ground Source Heat Pump BrochureBrochurePDF
1.38 MB
WPE-I H 230 Dimension DrawingTechnical DrawingPNG
220.95 kB
WPE-I H 230 Minimum SpacingTechnical DrawingPNG
22.07 kB
WPE-I H 230 2D CAD DWG Technical DrawingDWG
505.71 kB
WPE-I H 230 2D CAD DXFTechnical DrawingDXF
1.02 MB
WPE-I H 230 Exploded DiagramExploded DiagramPNG
57.83 kB
Commissioning Protocol: heat pumpsCommissioningPDF
219.81 kB
Registration Form for Heat Pump Service / CommissioningCommissioningPDF
104.80 kB

FAQ

Is the WPE-I 06-15 H Premium capable of active cooling?

No, the WPE-I 06-15 H Premium is specifically designed as a heating-only heat pump. It does not have the capability to provide active cooling.

Can I cascade multiple WPE-I 06-15 H Premium units?

No, the WPE-I 06-15 H Premium cannot be cascaded with other units. It is a standalone heating-only heat pump.

Can I use a 'forced cascade' configuration with two WPE-I 06-15 H Premium heat pumps?

Yes, in a 'forced cascade' configuration, you can use two WPE-I 06-15 H Premium heat pumps to heat and prepare hot water. However, there are specific requirements for this setup.

What are the requirements for a 'forced cascade' configuration?

In a 'forced cascade,' the heat pumps must not share a common ground loop. Instead, each heat pump should have its own separate loop.

What is the maximum brine temperature allowed for the WPE-I 06-15 H Premium?

The maximum brine temperature entering the WPE-I 06-15 H Premium should not exceed 20°C. Exceeding this temperature can lead to high-pressure errors and compressor shut-offs. Over time, this can affect the lifespan of the compressor.
